What is a Flow Wrapper Packaging Machine?

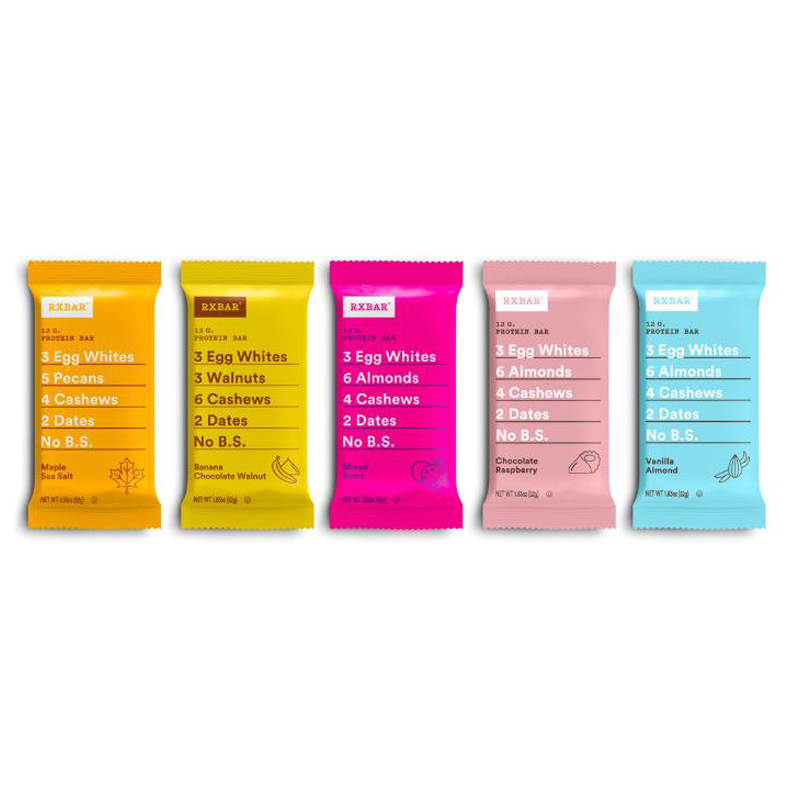

A flow wrapper packaging machine (also known as a horizontal form-fill-seal (HFFS) machine) is an automated system designed to wrap products in flexible film at high speeds. It is widely used in the food industry for packaging protein bars, cookies, snacks, candies, and baked goods. The machine forms a continuous tube of film around the product, seals it with precision, and cuts it into individual packages—ensuring freshness, extended shelf life, and attractive presentation.
| Multi-Function Packaging Machine |
| Model | P100 |
| Packing speed | 35-220bags/min |
| Bag size | L65-200W30-90H5-30MM |
| Film width | 65-220mm |
| Packing materials | OPP,CPP,PT,PE,KPT ,CPP,ALU-FOIL |
| Dimension | L:4000 X W:850X H:1600MM |
| Heat power | 2.4KW |
| Motor power | 0.2+0.4KW |
| Total power | 3KW |
| Total weight | 550KG |
Machine working video
1Crispy cake packing machine
.https://youtu.be/RTqjWV99VDk?si=_GMw-gj3mMQD2YMz
2.Flow wrapping machine for large size tray
https://youtu.be/gz5jP3ff75g?si=Fa6Zz6evkPJeT1qA
3.Mochi packing machine
https://youtu.be/DLC52RPeec0?si=pOEQOx1XbO-L2K-F
4.cookies plastic tray flow pack packaging machine
https://youtu.be/PJ4WSpXleFo?si=DmBWoJb9EzsKp7NM
Key Benefits of Flow Wrappers for Food Production
-
High-Speed Packaging – Capable of 80 to 400 packs per minute, making it ideal for large-scale food manufacturing.
-
Versatile Film Options – Works with high-barrier films, biodegradable materials, and printed packaging for branding.
-
Extended Shelf Life – Compatible with Modified Atmosphere Packaging (MAP) to preserve freshness by reducing oxygen exposure.
-
Minimal Product Waste – Precision sealing and cutting reduce film waste by up to 22% compared to other packaging methods.
-
Easy Integration – Fits seamlessly into production lines with checkweighers, metal detectors, and labeling systems.
How Does a Flow Wrapper Work?
The packaging process involves 5 key steps:
-
Film Unwinding – The machine feeds roll-stock film with controlled tension.
-
Tube Formation – A forming collar shapes the film into a continuous tube.
-
Product Insertion – Food items are fed into the film tube at synchronized speed.
-
Sealing & Cutting – Heated jaws create airtight seals, and a rotary cutter separates individual packs.
-
Output & Inspection – Finished packs are discharged while vision systems check for defects.
Choosing the Right Flow Wrapper for Your Business
When selecting a flow wrapper, consider:
✔ Production Speed – Match machine output to your required capacity.
✔ Film Compatibility – Ensure support for barrier films, recyclable materials, or custom prints.
✔ Automation Level – Options include auto-loading, robotic case packing, and IoT-enabled monitoring.
✔ Sanitary Design – EHEDG & FDA-compliant models for food safety.
Top Applications in Food Packaging
-
Protein Bars & Energy Snacks – Airtight sealing prevents moisture loss.
-
Cookies & Biscuits – Gentle handling preserves product integrity.
-
Chocolate & Confectionery – Cool sealing prevents melting.
-
Frozen Foods – Compatible with cryogenic freezing environments.
Why Invest in a Modern Flow Wrapper?
Newer models feature:
